New Canon CR-N300 with Autotracking View full size
Canon

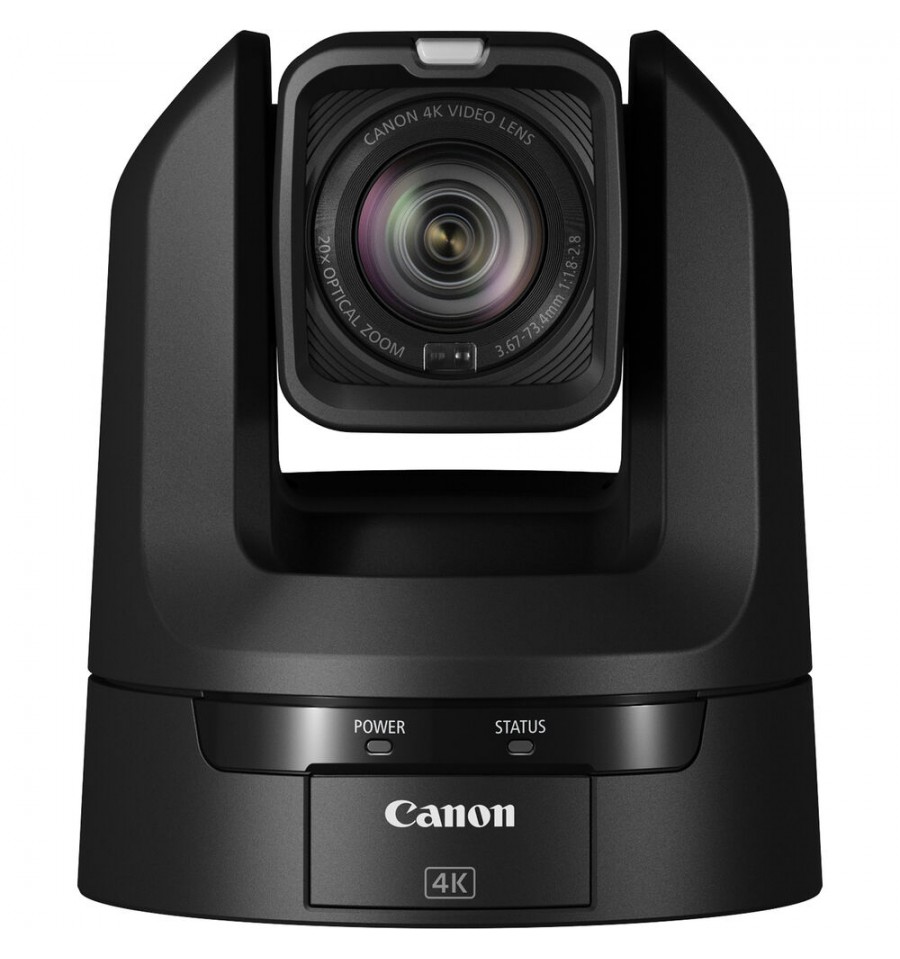

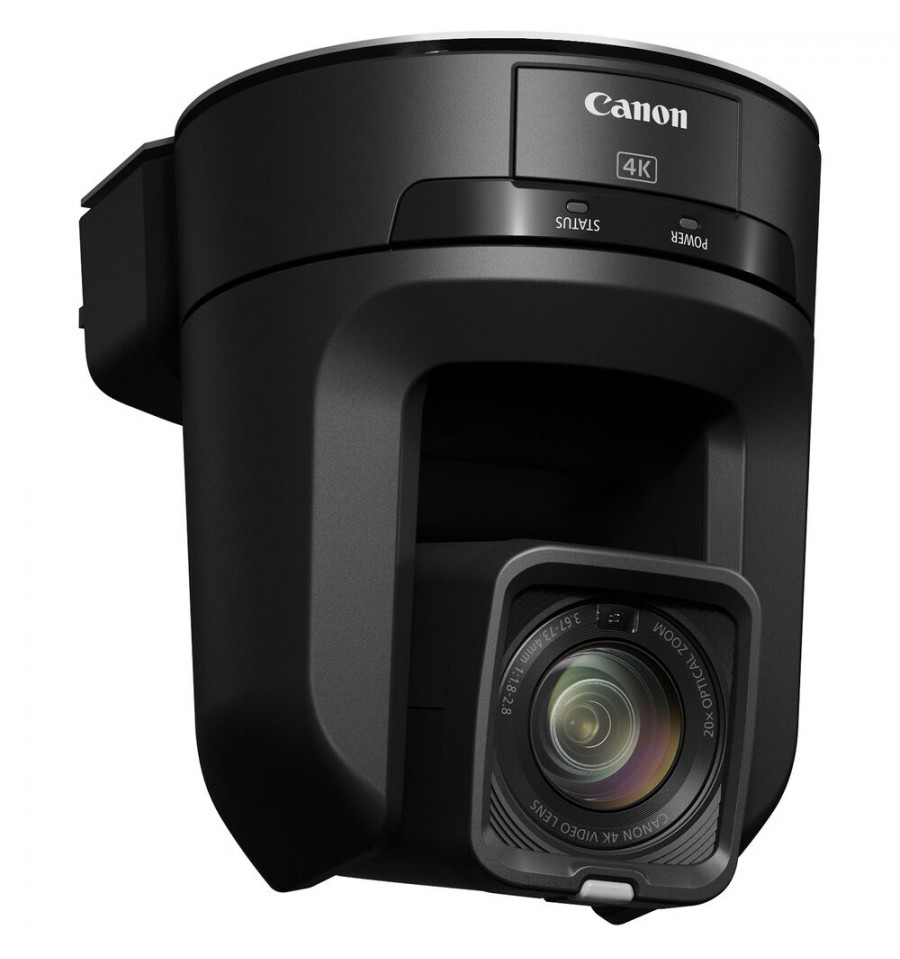

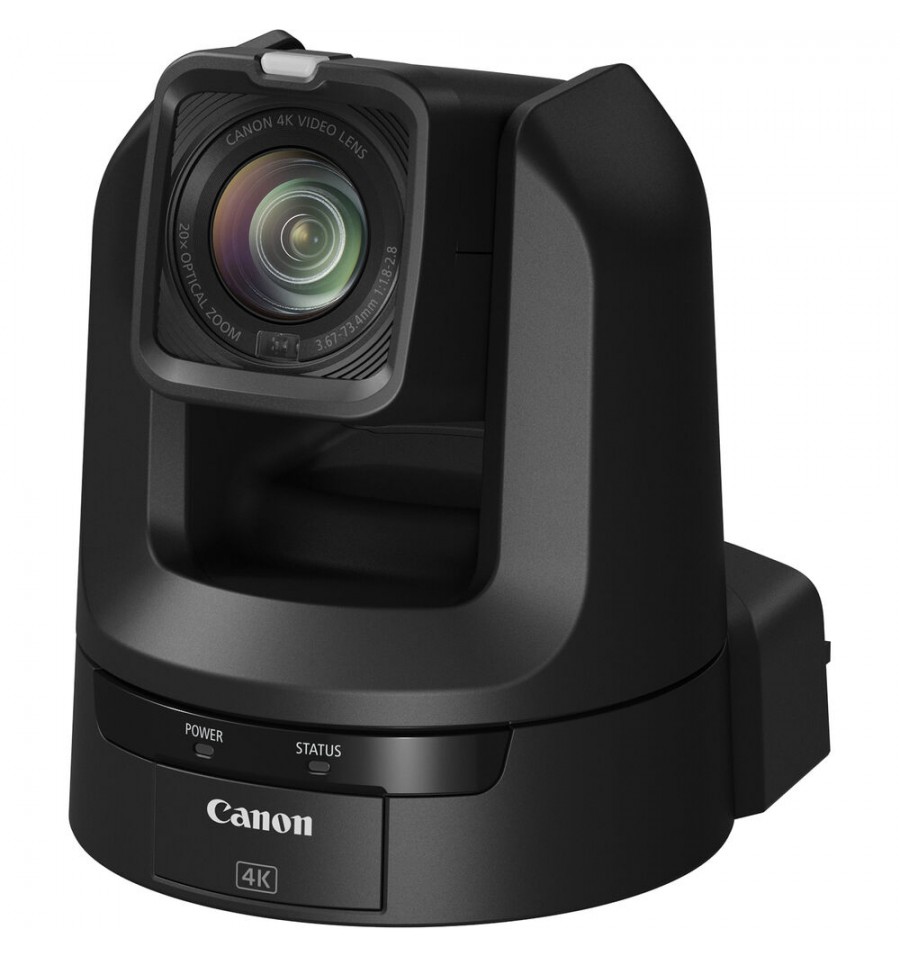

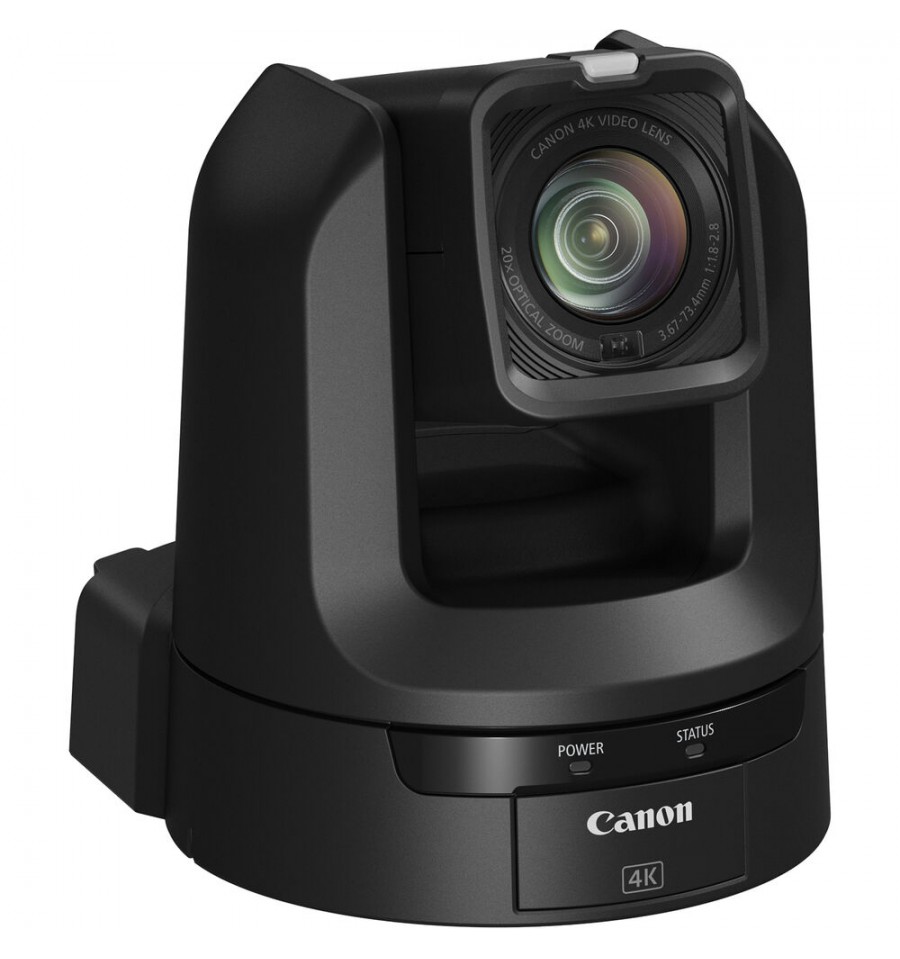

Canon CR-N300 with Autotracking

Reference: 11387

A high quality 4K PTZ camera with advanced autofocus, 20x optical zoom and multiple IP protocols with built-in intelligent Auto Tracking.

More details

Notify me when available

quantity up quantity down

3 955,00 €

Close the distance with unrivalled clarity

The CR-N300 makes content creation and streaming simple. Equipped with a 1/2.3-inch CMOS sensor with 4K UHD resolution, 20x image stabilised optical zoom and a wide range of streaming and control protocols, as well as the ability to automate your productions using Auto Tracking App RA-AT001(Lite)*, it’s the ideal choice for a variety of productions.

Accurate 4K Auto Tracking

Unlock the potential to track the main speakers with face detection as they move around the stage, automatically. Auto Framing, with Multi-person Framing, delivers natural composition with multiple speakers with ease, while Face Direction framing is ideal for single speakers, creating natural space in front, according to their face direction. Capable of multiple adjustments, settings such as composition size, tracking sensitivity, exclusion zones, priority display area and more mean the ideal tracking set-up can be easily achieved.

Razor sharp 4K imagery

A 1/2.3-type CMOS Sensor and DIGIC DV6 processor combine to deliver exceptional 4K UHD imagery (up to 30p), or outstanding Full HD footage thanks to over sampled HD processing. These technologies provide an image quality with superior levels of detail fit for any production.

20x Optical zoom for incredible flexibility

Capture all the detail you need, thanks to Canon’s advanced 4K optics which feature a flexible 20x optical zoom covering a broad focal range of 29.3-601mm (35mm equivalent), ensuring great flexibility. Equipped with image stabilisation, for minimal image disruption when moving.

Hybrid AF for precise focus

The CR-N300 combines high-precision contrast AF with high-speed phase-detection AF, ensuring rapid and accurate focusing of the subject, even in low light conditions.

Equipped with a bespoke external sensor which measures the distance to the subject and compares the point of focus with that determined by the Contrast AF system. This Hybrid AF system is particularly effective in low light situations and provides fast, accurate and reliable Autofocus with greater accuracy than Contrast AF alone.

Flexible connectivity for your workflow

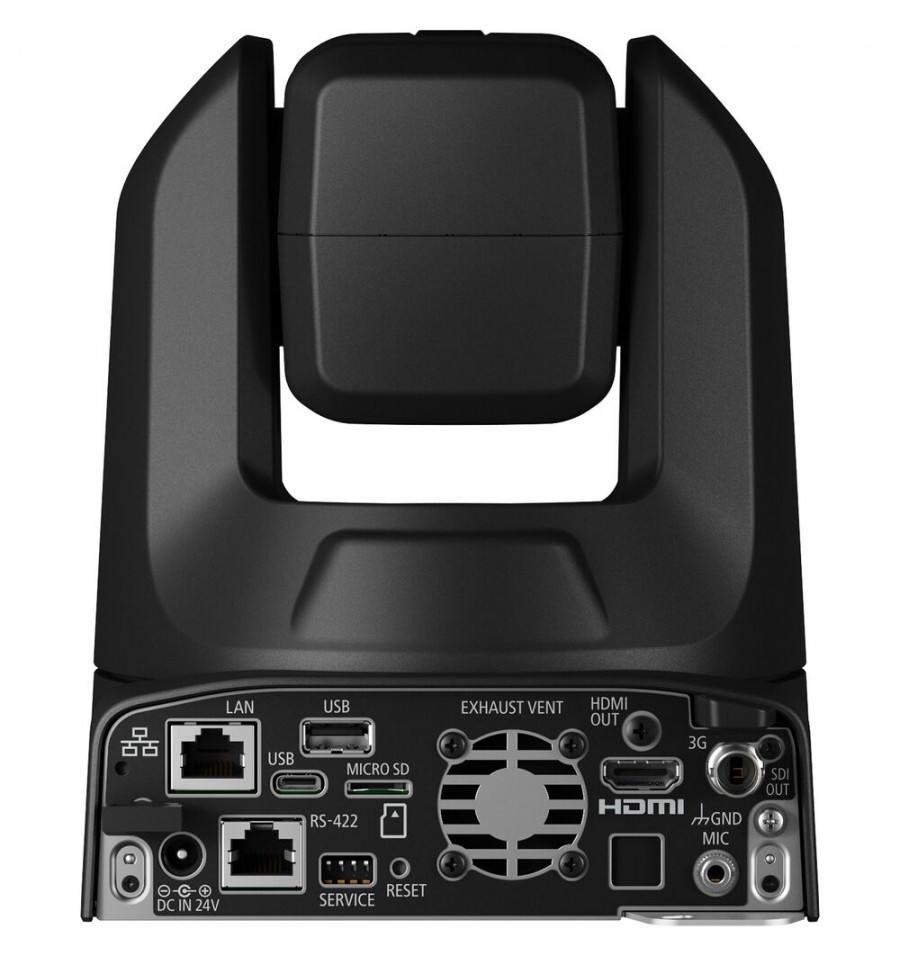

The CR-N300 features a whole host of connections to ensure the ultimate flexibility in workflows. Featuring a HDMI port which can achieve 4K UHD, 4:2:2 10-bit. The camera also boasts a 3G-SDI port, USB Port, 3.5mm Audio Input and a PoE+ LAN port.

Smooth, precise control

The CR-N300 is equipped with a high-precision drive mechanism, enabling the Pan and Tilt movement to be finely adjusted at variable speeds using controllers such as RC-IP100, Canon Remote Camera Control Application or a tablet via Wi-Fi, to capture the perfect shot.



Image Presets for Quick and Easy Use

The CR-N300 is equipped with multiple Image Presets that allow for quick and easy adjustments of video settings for specific environments. The user can also register up to 100 preset positions on the CR-N300 making productions simple and easy.

Small and compact for easy installation

The CR-N300 is small and discreet at 154 x 178 x 164 mm (W x H x D), and weighs just 2.2kg making it ideal to be installed in environments where space is at a premium.

Imaging
Image Sensor
1/2.3"-Type CMOS
Sensor Resolution
Actual: 21.14 Megapixel
Effective: 8.29 Megapixel (3840 x 2160)
IR Cut Filter
No
Focus Control
Autofocus
Manual Focus
Exposure Control
Shutter Speed
1/2000 to 1/6 Second
ISO/Gain Sensitivity
Gain: 0 to 36 dB dB
Minimum Illumination
1.5 Lux at 1/30 Shutter Speed
Flip / Mirror Support
Image Flip, Mirror (Vertical)
White Balance
Range: 2000 to 15,000K
Presets: AWB, Manual, Set A, Set B
Lens
Focal Length
3.7 to 73.4mm (35mm Equivalent: 29.3 to 601mm)
Optical Zoom Ratio
20x
Max Digital Zoom
20x
Field of View
Horizontal: 65.6 to 3.6°
Vertical: 39.8 to 2°
Maximum Aperture
f/1.8 to 2.8
Minimum Focus Distance
0.4" / 1 cm (Wide) to 23.6" / 60 cm (Tele)
Video Capture
External Recording Modes
USB
HD (1920 x 1080p) at 5/12 fps
HD (1280 x 720) at 5/12 fps
640 x 360 at 5/12 fps
4:2:0 8-Bit via RJ45
3840 x 2160 at 5/14.99/29.97 fps
1920 x 1080p at 5/14.99/29.97/59.94 fps
1280 x 720 at 5/14.99/29.97/59.94 fps
640 x 360 at 5/14.99/29.97/59.94 fps
4:2:2 10-Bit via HDMI
3840 x 2160 at 23.98/25/29.97 fps
1920 x 1080p at 23.98/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
4:2:2 10-Bit via SDI/BNC
1920 x 1080p at 23.98/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
Embedded Audio
SDI
Broadcast Output
NTSC/PAL
IP Streaming
H.264 via SRT/RTSP/RTP/RTMPS/RTMP/NDI|HX
3840 x 2160 at 5.00p, 29.97p, 14.99p
640 x 360 to 1920 x 1080 at 5.00p, 29.97p, 59.94p, 14.99p
Control
Presets
100 via IP, VISCA
Pan/Tilt
Pan: 340° (-170 to 170°) at 2 to 300°/s
Tilt: 130° (-30 to 100°) at 0.2 to 170°/s
Tally Light
Yes
Supported Control Protocols
Canon XC
IR
RS-422
VISCA
Interface
Video I/O
1x BNC (3G-SDI) Output
1x HDMI (Unspecified Signal) Output
1x RJ45 (NDI) Output
1x USB-C 3.0 / 3.1/3.2 Gen 1 Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
Other I/O
1x RJ45 (RS-422, VISCA) Control Input
1x USB-A Input
Built-In Microphone
No
Built-In Speaker
No
Power
PoE Support
PoE+ 802.3at
Power I/O
1x Barrel (24VDC) Input
Power Consumption
PoE: 16.2 W
Power Supply: 24 VDC 15 W
Environmental
Operating Conditions
32 to 104°F / 0 to 40°C at 10 to 90% Humidity
Storage Conditions
32 to 104°F / 0 to 40°C at 10 to 90% Humidity
General
Mounting
1x 1/4"-20 Female for Tripod
OS Compatibility
Computer: Windows 10 or Later / macOS 11 Only
Mobile: Android/iOS
Dimensions (W x H x D)
6.1 x 7 x 6.5" / 154 x 178 x 164 mm (Without Protrusions)
Weight
4.9 lb / 2.2 kg (Body Only)
