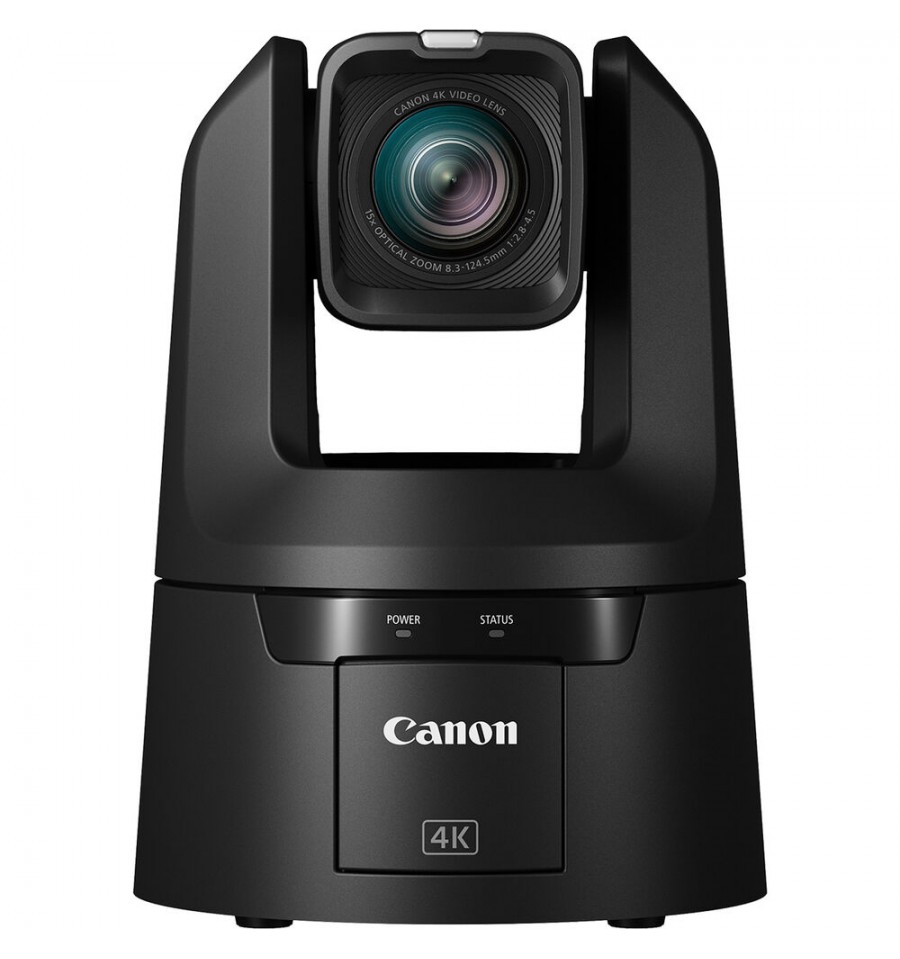

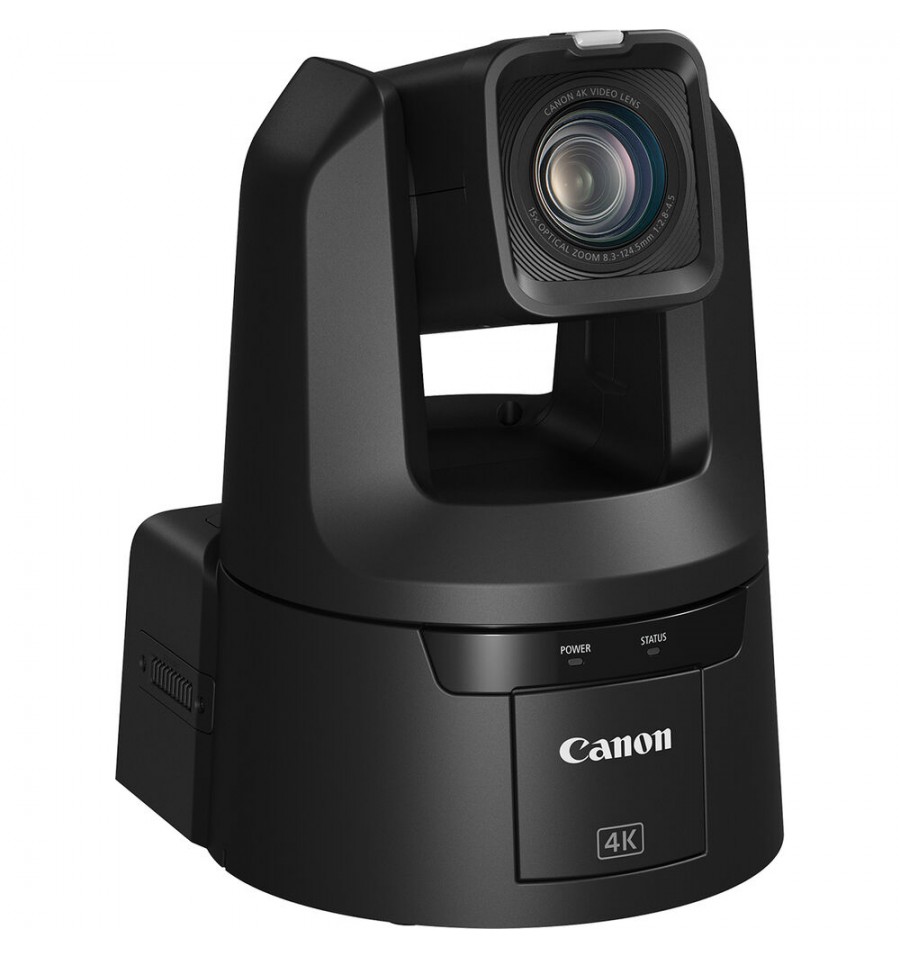

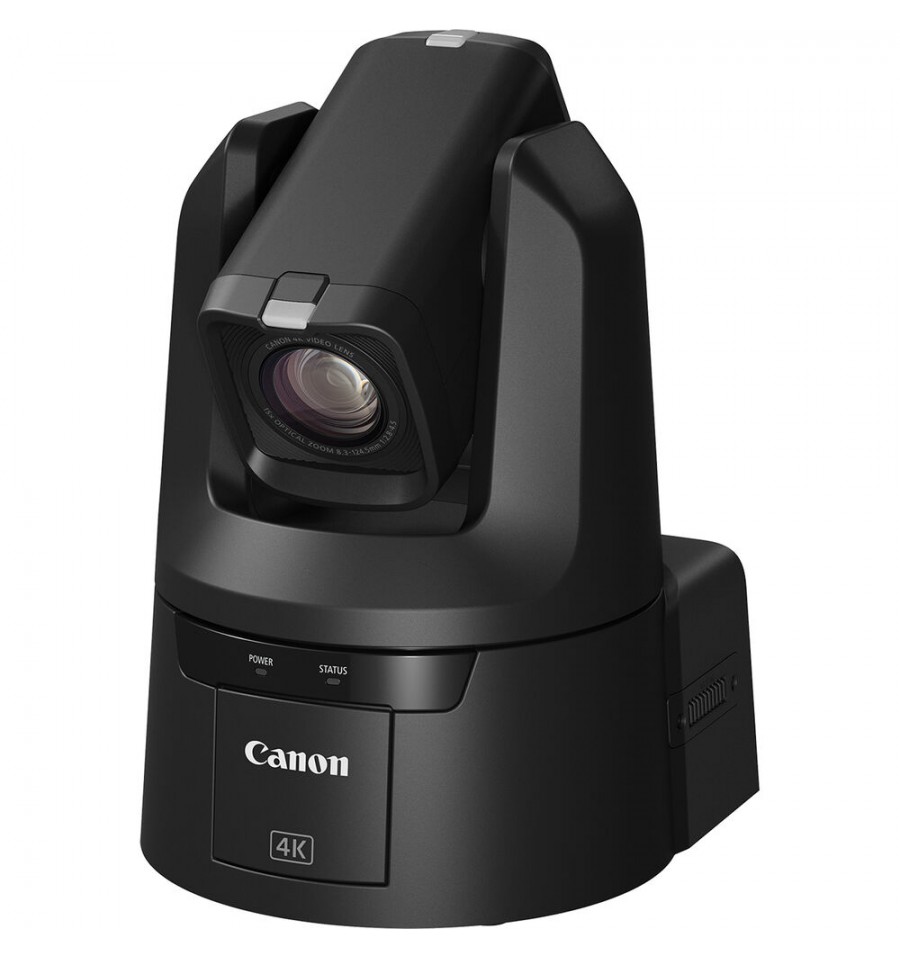

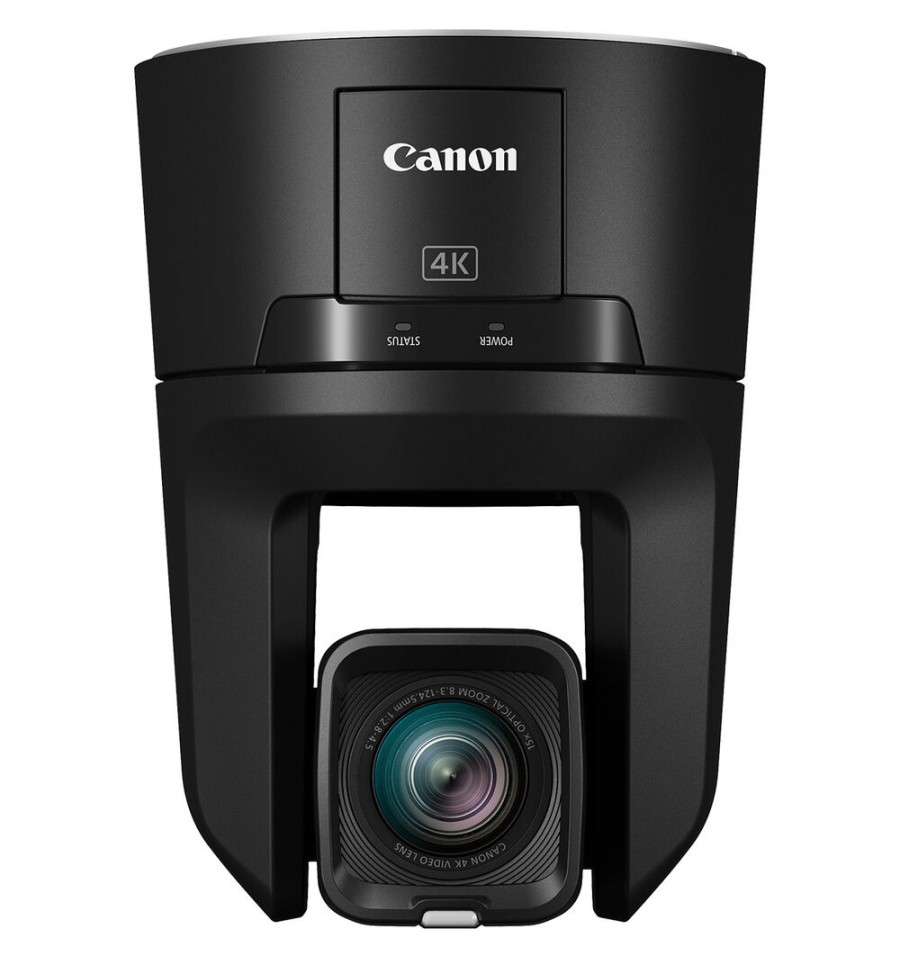

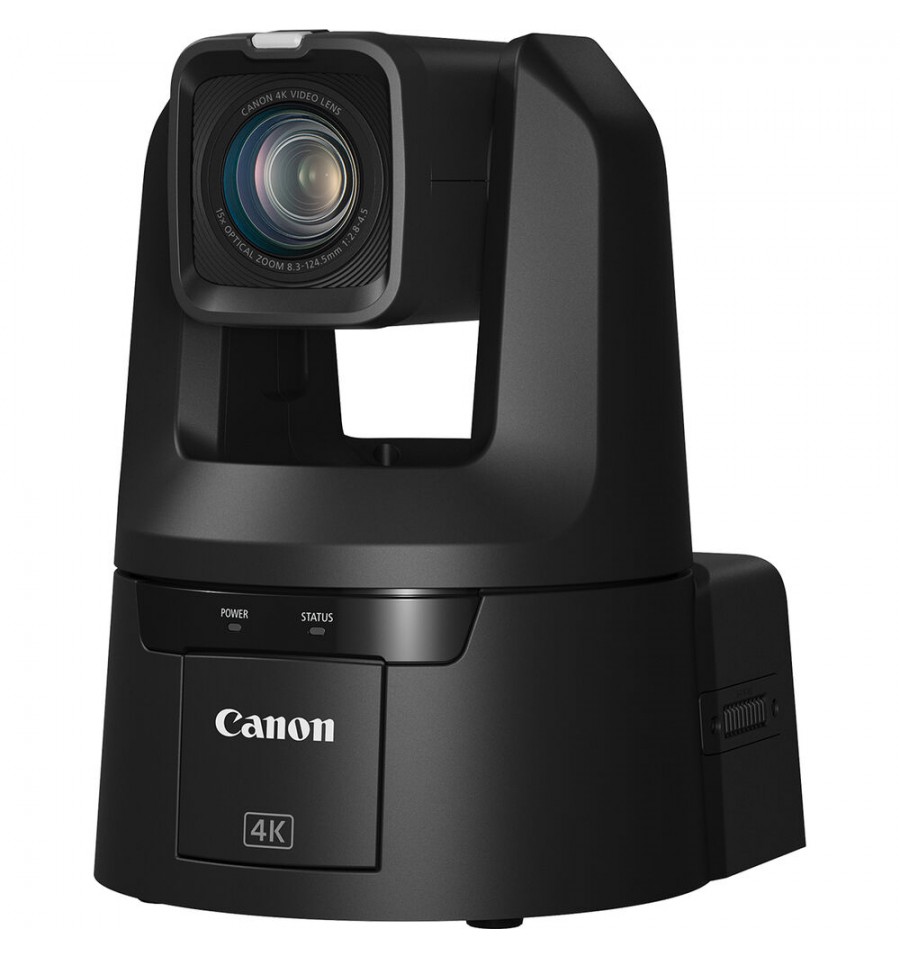

CANON CR-N700 with Autotracking

Close the distance with unrivalled clarity

Harness the power of a 1.0-type 4K sensor and DIGIC DV7 processor with Dual Pixel AF. A 15x optical zoom (30x in Full HD) captures productions in exceptional detail, even in Night Mode. Stream 4K60P and HDR quality broadcast footage via a wide range of IP protocols and automate your productions using Auto Tracking and Auto Loop functions.

4K detail for imaging excellence

A 1.0-Type CMOS sensor and DIGIC DV7 processor deliver 4K UHD 60P imagery in up to 4:2:2 10-bit, 12G-SDI and HDMI for broadcast-standard image quality, plus 4K60P over IP.

Class-leading optical precision

The CR-N700’s high-performance lens has a 15x optical zoom (25.5mm - 382.5mm, 35mm equivalent) plus a 30x Advanced Zoom when shooting in Full HD. And when conditions are unstable, Canon’s renowned Image Stabilizer captures optimal footage.

Award-winning Auto Focus technology

Fast, intelligent, and extremely accurate focussing via multiple modes thanks to Canon’s proprietary Dual Pixel CMOS AF technology with advanced EOS iTR AF X.

Accurate 4K Auto Tracking

Unlock the potential to track the main speakers with head/face detection as they move around the stage, automatically. Auto Framing, with Multi-person Framing, delivers natural composition with multiple speakers with ease, while Face Direction framing is ideal for single speakers , creating natural space in front, according to their face direction. Capable of multiple adjustments, settings such as composition size, tracking sensitivity, exclusion zones, priority display area and more mean the ideal tracking set-up can be easily achieved.

Intelligent Auto Loop

Programme repeated camera pan, tilt and zoom movements to track repeated live action, consistently and accurately thanks to Canon’s advanced drive mechanism. Experience the flexibility of programming movements with the ability to initialise a loop back and forth, meaning no camera operator is required. Five automatic movement routes can be registered and are easy to create or customise thanks to an easy setting UI.

Multiple protocols for seamless integration

The CR-N700 features SRT and NDI|HX1 that produce high quality video streams for broadcasters. RTMP/RTMPS, RTP/RTSP are included, along with Canon XC and Standard communication protocols, plus FreeD for integration into virtual productions.

Powerful HDR imagery and low light capture

Achieve stunning HDR imagery with direct recording into either PQ or HLG formats. A range of custom picture settings includes Canon Log 3 and Wide Dynamic Range to match your image with other Canon cameras.

Crop function – single camera, two video feeds

Select and extract a point of interest via a separate feed. The chosen area can then be output as a main or secondary signal and up to two cropped areas can be set in FHD.

Night Mode

Capture footage in near-darkness thanks to IR Mode, which extends the spectrum visible to the camera.

Comprehensive connectivity

Connect flexibly with 12G-SDI, HDMI or IP (PoE++) all supporting 4K60P, as well as professional dual XLR audio inputs. CR-N700 also includes 3G-SDI and GEN-LOCK.

Smooth and precise control

The CR-N700 has a high-precision drive mechanism for fine Pan and Tilt movement as slow as 0.1°/s. Compatible with the RC-IP1000, the RC-SK5, the RC-IP100 controller and Remote Camera Control Application controllers.

PTZ Remote Camera Compatibility

Canon PTZ remote cameras are compatible with a wide variety of third-party software solutions. Discover which cameras work seamlessly with specific third-party software.
